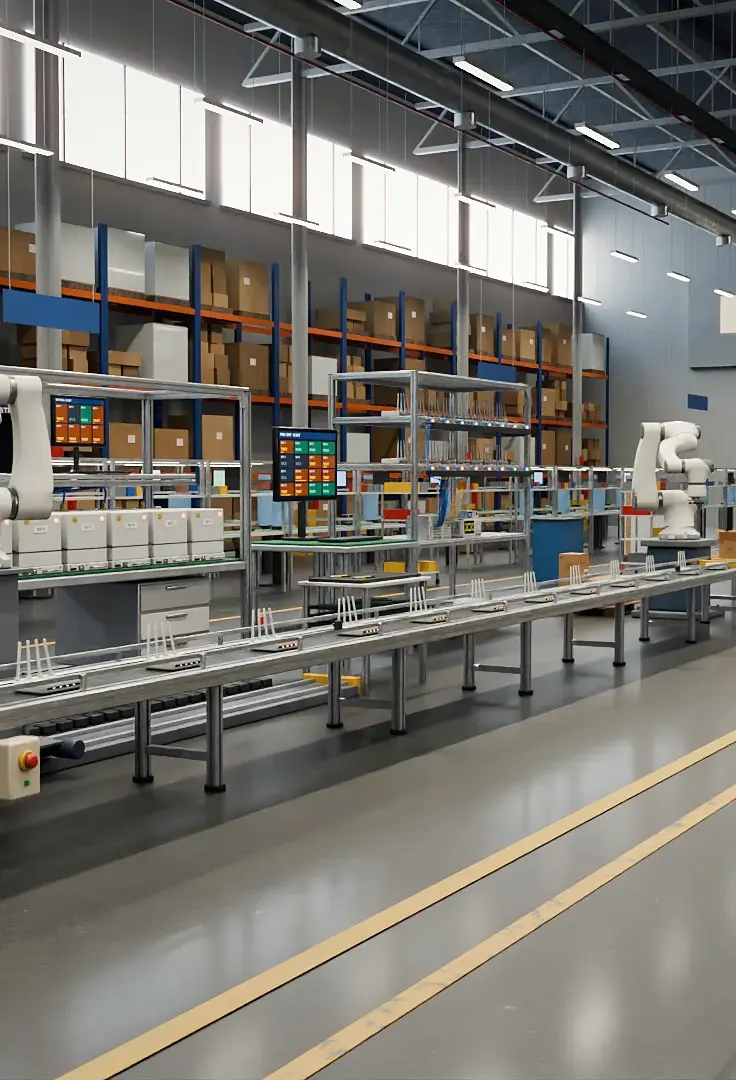

Line 01 · PCB to palletLive simulation · Line 01
Shield boxes testing3 / 8
PON DUTs testing8 / 16
Stations on line03 · Wi-Fi · PON · Pack
Routers packed since you arrived0
Drag to rotate
Turnkey production test · Wi-Fi · GPON · Cellular
Production test lines for Wi-Fi, GPON and 5G devices.
Wi-Fi calibration benches, PON / ONT test racks and the software that runs them — designed, installed and supported by one team in India, for factories anywhere. Buy the line, or rent it by the month.
Wi-Fi 6 · 6E · 72.4 / 5 / 6 GHz calibration
GPON · XGS-PONOptical, OLT and OMCI tests
LTE · 5G NRCPE, FWA and modules
MES-linkedEvery unit traced by serial
What we do
One partner for the whole line. Hardware, software, service.
Most factories buy testers from one vendor, fixtures from another and write the software themselves. We deliver it as one working line — and stay on after launch.
01Turnkey lines
Multi-station lines, installed and validated on your floor.
Explore
02Line Manager
Sequencing, instrument control, MES and yield analytics.
See the software
03Station rental
Ready-to-run stations by the month, for NPI and peaks.
Rental plans
04Service
Calibration, retrofits, upgrades and AMC contracts.
Lifecycle servicesOur stations
Two stations. Twenty-four devices under test at once.
The building blocks of most Telvonic lines. Each one ships with fixtures, cabling, software and a validated test plan — to buy or to rent.
ST-01

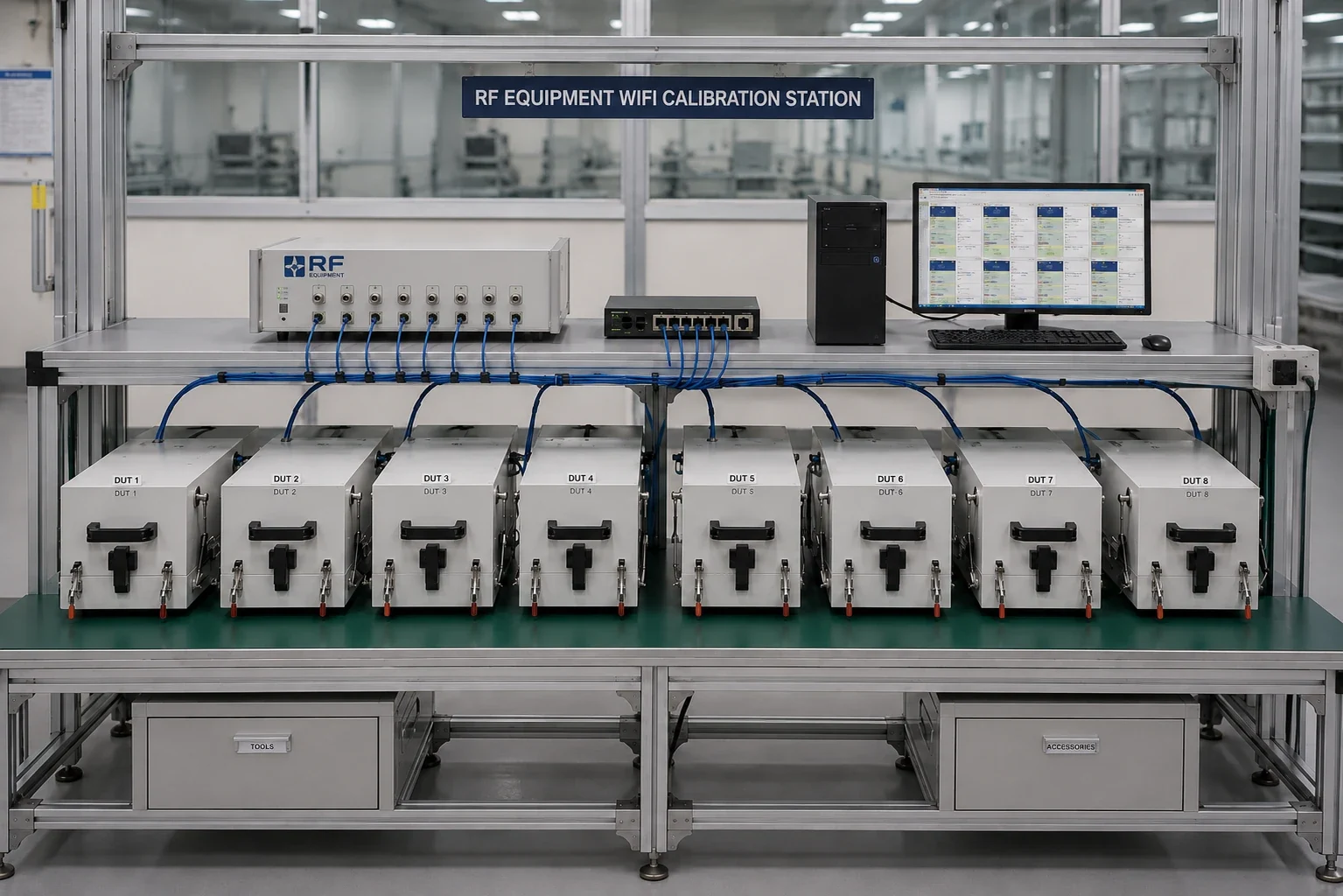

Wi-Fi calibration station
Eight RF shield boxes on an ESD bench, driven by an 8-port RF tester. Every DUT is calibrated and verified in parallel, then uploaded to your MES.
- Parallel DUTs
- 8 RF shield boxes
- Standards
- 802.11a/b/g/n/ac/ax/be (Wi-Fi 4 – 7)
- Bands
- 2.4 / 5 / 6 GHz, up to 320 MHz channels
- Tests
- TX power & frequency cal, EVM, mask, RX sensitivity
- Control
- Line Manager on station PC · MES upload
ST-02

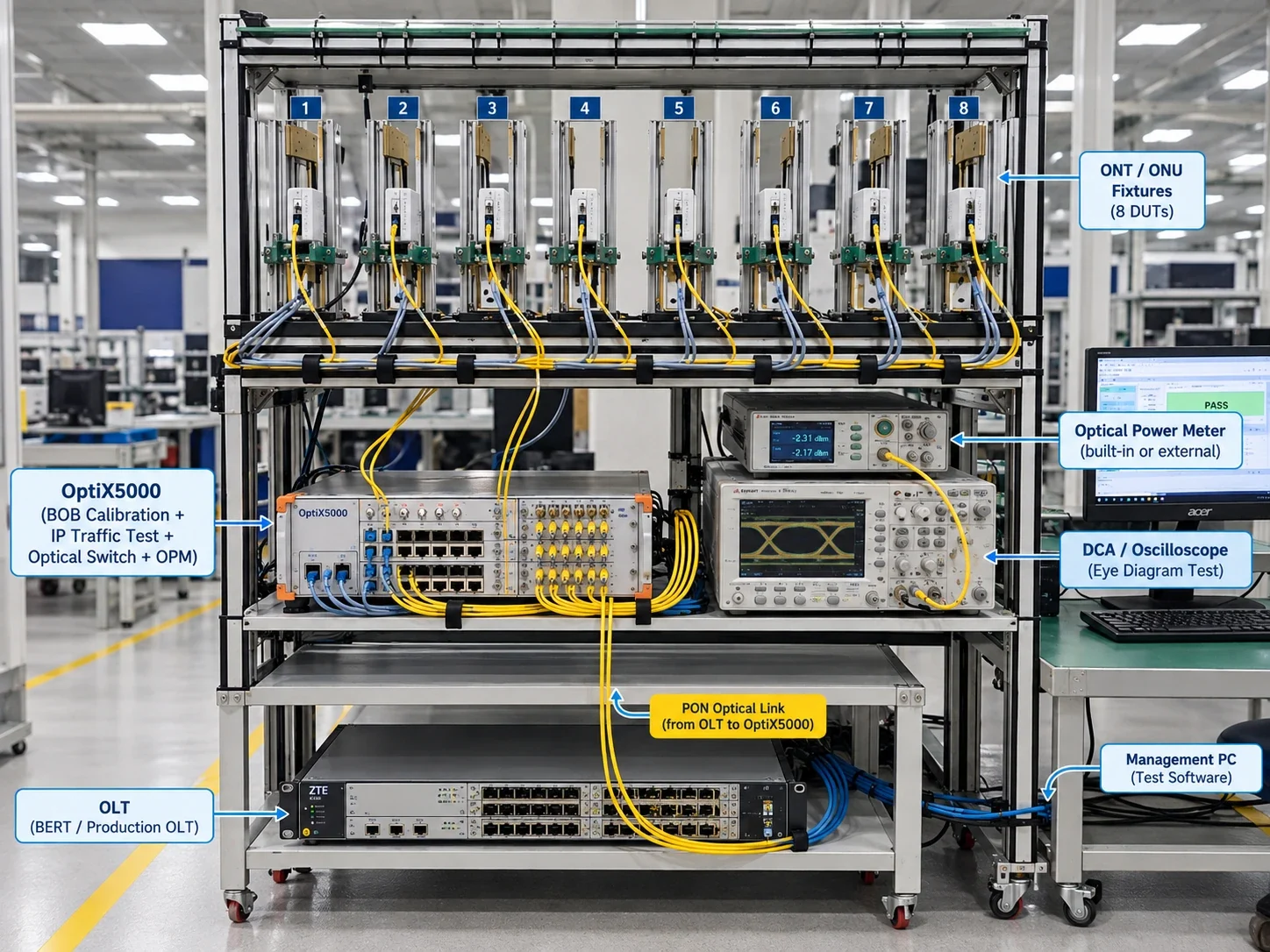

PON / ONT test station
A mobile rack that tests 16 routers at once on two tiers of eight, each wired by PON fibre and LAN, above a PON tester, optical power meter, DCA scope and production OLT — optical, protocol and traffic tests in one pass.
- DUTs
- 16 in parallel · 2 tiers × 8 · PON + LAN
- PON types
- GPON · XG(S)-PON · EPON
- Optical
- TX power, RX sensitivity, eye diagram (DCA)
- Protocol
- OLT registration, OMCI checks, IP traffic
- Control
- Management PC · Line Manager · MES
Radio technologies
on one line
on one line
3TECH
Widest Wi-Fi 7
channel calibrated
channel calibrated
320MHz
Devices in parallel
per station
per station
8DUT
PON line rate
tested end-to-end
tested end-to-end
10Gbps
How we deliver
From spec sheet to stable yield.
Five steps take a new router, ONT or 5G device from engineering sample to full-rate production. One team owns every step.
Start with an assessmentDesign
Line layout, station split, instrument selection, RF paths and fixtures, drawn up and agreed before anything is built.
Build & integrate
Stations assembled, instruments integrated under Line Manager, and the full test plan dry-run with golden units.
Install & validate
On-site installation, golden-unit correlation, GR&R studies, MES hand-shake and operator training.
Ramp & support
Yield monitoring through ramp-up, remote support, calibration, and upgrades as your next product arrives.
Technologies
Wi-Fi, fibre, cellular and RF. On one line, under one software layer.
Combo devices — Wi-Fi ONTs, 5G routers with Wi-Fi 7 — need every radio tested and tracked as one unit. That's our speciality.
Wi-Fi 6 · 6E · 7Wi-Fi test lines. Calibration and verification for routers, mesh nodes and access points across 2.4, 5 and 6 GHz.
Wi-Fi production test
GPON · XGS-PONPON / ONT test lines. Optical, OLT registration and traffic tests for fibre gateways — including combo ONT + Wi-Fi.
GPON ONT test
LTE · 5G NRCellular device test. Calibration, signalling and identity checks for CPE, fixed-wireless routers and modules.
4G / 5G device test

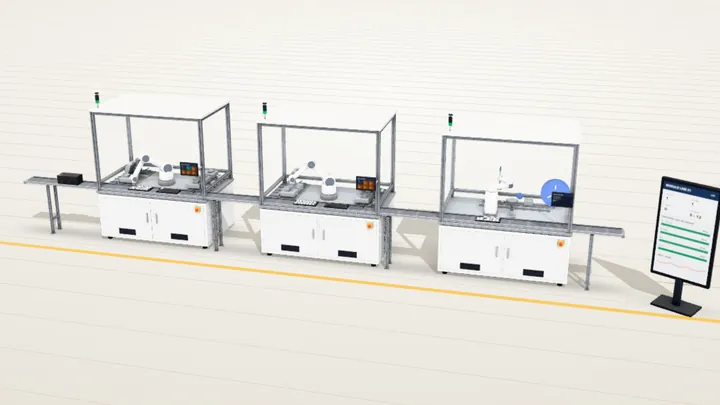

LTE · NB-IoT · RedCap · GNSSIoT & RF module lines. Robot-loaded RF fixtures, firmware download, calibration, AOI and tape & reel, traced from tray to reel.
IoT & RF module test

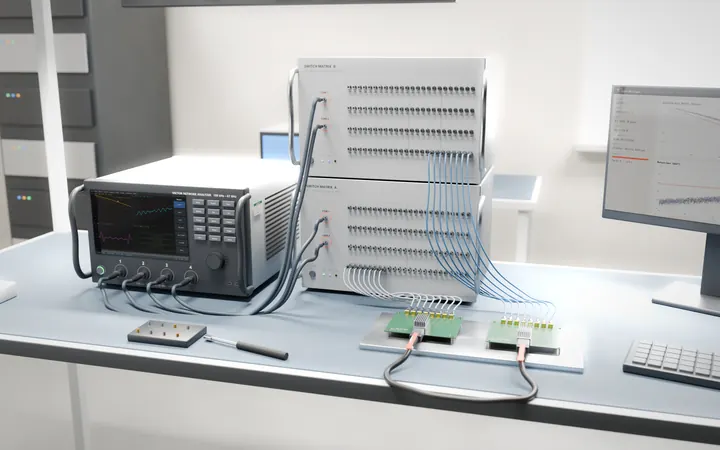

PCIe · 802.3ck · VNAHigh-speed cable & VNA test. A cable test system for DAC, AEC and connectors, and vector network analyzers from 8.5 to 110 GHz.
Cable & VNA test
Rent · Rent-to-ownTest equipment rental. Testers, shield boxes and ready-to-run stations by the month, delivered across India.
Test equipment rental
Line Manager software
Many instruments. One line. One record per unit.
Line Manager runs the test plan on every station, controls instruments from multiple vendors, and turns every result into traceable, MES-ready data.
01
Test sequencerProduct-specific plans with limits, retries and multi-DUT parallelism.
02
MES & traceabilityRoute check before test, full results uploaded by serial number after.
03
Live yieldFirst-pass yield, failure Pareto and station health in real time.
Line Manager · Line 01Illustrative
First-pass yield
98.4%
Units / hour
212UPH
Station status
ST-01 · Wi-Fi cal · DUT 1–8 PASS
ST-02 · PON / ONT · FIX 1–8 TESTING
ST-03 · Final QC PASS
RF path loss file CAL DUE 12D
Unit trace · SN A24K0937
- Scan
- Route OK
- ST-01 pass
- ST-02 pass
- MES upload
Output · last 12 hours
Rental & equipment
Test capacity, by the month.
Rent single instruments or complete stations that arrive configured for your product — for pilot builds, launches and peaks. Or buy, with the same support.
Rent · Buy
Wi-Fi calibration station
8 DUT · Wi-Fi 6/6E/7 · shield boxes + RF testerRequest quoteRent · Buy
PON / ONT test station
16 DUT · GPON / XGS-PON · OLT, OPM, DCARequest quoteRent · Buy
RF shield boxes
Manual & pneumatic · multi-DUT · up to 7.125 GHzRequest quoteRent · Buy
Test instruments
Wi-Fi / cellular testers · PON sets · traffic generatorsRequest quoteFAQ
Common questions
Can't find what you need? Write to us — an engineer replies, not a call centre.
What does a turnkey production test line include?
Line design, test instruments, RF shield boxes and fixtures, cabling and RF switching, our Line Manager software, MES connectivity, installation, validation (golden-unit correlation and GR&R), operator training and support after launch.
Which products can you test?
Wi-Fi routers, mesh nodes and access points (Wi-Fi 5, 6, 6E and 7); GPON, XGS-PON and EPON ONTs and ONUs, including combo units with Wi-Fi; and 4G / 5G CPE, fixed-wireless routers and IoT modules.
Can we rent a station instead of buying it?
Yes. We rent individual instruments and complete, ready-to-run stations such as the 8-DUT Wi-Fi calibration bench and the 16-DUT PON / ONT rack, on short-term, project-based or rent-to-own terms.
Does the software connect to our MES?
Yes. Line Manager checks each unit's route before testing and uploads every result by serial number to your MES or ERP through a REST API, database or file exchange.
Resources
Guides from the test floor.
Practical, vendor-neutral notes from our engineers. All resources
Wi-Fi · 6 min read
Wi-Fi 7 production testing
320 MHz channels, 4096-QAM limits and three times the RF chains — what Wi-Fi 7 means for calibration, verification and cycle time.
Read the guide Fibre / PON · 6 min readGPON & XGS-PON ONT test checklist
Optical power and sensitivity, OLT registration, OMCI, traffic, voice and Wi-Fi — every stage an ONT must pass before it ships.
Read the guide RF test · 6 min readChoosing an RF shield box
Isolation targets you can calculate, 6–7 GHz coverage, absorbers, filtered I/O, and manual versus pneumatic boxes.
Read the guide Rental · 5 min readRent or buy test equipment?
A simple break-even method, the costs people forget, rent-to-own, and what to check in a rental agreement.
Read the guide RF test · 7 min readHow to choose a vector network analyzer
Frequency range for your data rate, port count, dynamic range at production speed, calibration and connectors.
Read the guide Signal integrity · 8 min readDAC and AEC cable testing
Passive cables as channels, active cables as links: the measurements, the faults each one catches, fixtures and production stations.
Read the guideNext step
Launching a router, ONT or 5G device? Let's size the line.
Send the chipset, technologies and target volume. We'll come back with a station plan, cycle-time estimate and budget.
